在 Linux 上 使用 Caddy 原生实现 Steamcommunity 302 的功能并实现开机自启
以下操作均在 Arch Linux 下进行,其他发行版可能需要适当修改证书安装的路径及所用命令
生成配置文件#

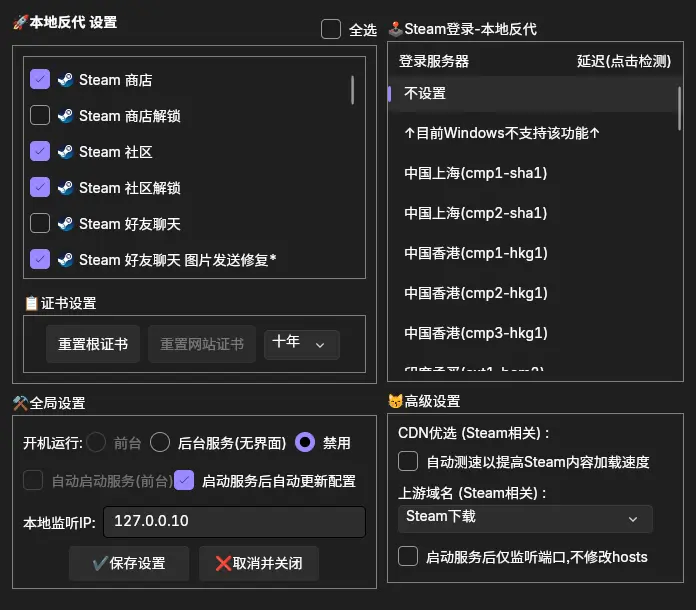

为了生成自定义配置,需要在 Wine 下运行 Steamcommunity302,在设置里勾选需要的服务,将证书期限修改为 10 年,点击 导出SteamDeck版本一键安装脚本
在 SteamDeck_302
文件夹下将如下几个文件到任意目录,这里假定为 /data/caddy
,根据需要自行替换目录
- steamcommunity.crt
- steamcommunity.key
- steamcommunity_302.caddy.json
- steamcommunityCA.pem
复制 Steamcommunity 302 设置里的 hosts 到 Linux 的 /etc/hosts
,根据反代服务选择不同,hosts 条目也不同,请复制自己设置内的 hosts
127.0.0.1 steamcommunity.com #S302
127.0.0.1 www.steamcommunity.com #S302
127.0.0.1 store.steampowered.com #S302
127.0.0.1 checkout.steampowered.com #S302
127.0.0.1 api.steampowered.com #S302
127.0.0.1 help.steampowered.com #S302
127.0.0.1 login.steampowered.com #S302
127.0.0.1 store.akamai.steamstatic.com #S302
下载 Caddy#
在 caddy/release 下载对应平台的 caddy(如 amd64 下载 caddy_2.7.6_linux_amd64.tar.gz
)
解压出来 caddy
二进制文件放入 /data/caddy
此时你的 /data/caddy
文件夹结构应如下
caddy
├── caddy
├── steamcommunity_302.caddy.json
├── steamcommunityCA.pem
├── steamcommunity.crt
└── steamcommunity.key
编辑配置#
目前使用SteamDeck版本一键安装脚本则无需修改,请略过本节
打开 steamcommunity_302.caddy.json
找到随机生成的端口号,此处端口为 19736
https://steamcommunity.com:19736 https://www.steamcommunity.com:19736 {
tls steamcommunity.crt steamcommunity.key
@steamcommunityrp {
path /comment/*
path /forum/*
···
https://store.steampowered.com:19736 https://api.steampowered.com:19736 https://help.steampowered.com:19736 https://login.steampowered.com:19736 https://store.akamai.steamstatic.com:19736 {
#tls self_signed
tls steamcommunity.crt steamcommunity.key
···
将所有的 :19736
删除,处理后的部分如下
https://steamcommunity.com https://www.steamcommunity.com {
tls steamcommunity.crt steamcommunity.key
@steamcommunityrp {
path /comment/*
path /forum/*
···
https://store.steampowered.com https://api.steampowered.com https://help.steampowered.com https://login.steampowered.com https://store.akamai.steamstatic.com {
#tls self_signed
tls steamcommunity.crt steamcommunity.key
···
安装证书#
certutil -A -d sql:~/.pki/nssdb -n "Steamcommunity302" -t C,, -i "steamcommunityCA.pem"
sudo cp steamcommunityCA.pem /etc/ca-certificates/trust-source/anchors/steamcommunityCA.crt
sudo trust extract-compat
启动服务#
赋予caddy可执行权限
chmod +x caddy
赋予caddy监听所需端口权限
sudo setcap CAP_NET_BIND_SERVICE=+eip caddy
启动
./caddy run --config steamcommunity_302.caddy.json --adapter caddyfile
如启动无报错 Ctrl+C 强行停止,配置 Systemd 服务
新建编辑 .config/systemd/user/caddy.service
,修改两处 /data/caddy
[Unit]
Description=Caddy Steam Reverse Proxy
[Service]
WorkingDirectory=/data/caddy
ExecStart=/data/caddy/caddy run --config steamcommunity_302.caddy.json --adapter caddyfile
[Install]
WantedBy=default.target
运行并启动服务
systemctl --user daemon-reload
systemctl --user enable --now caddy.service
查看服务状态
systemctl --user status caddy.service
疑难解答#
- steamcommunity_302.caddy.json 不存在? steamcommunity 302 未成功运行,尝试在 windows 环境下重新运行
